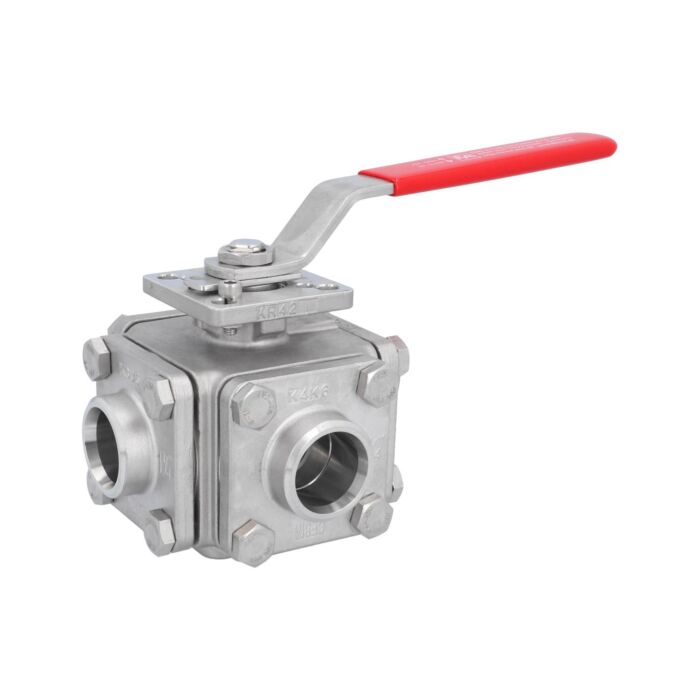

        3-way ball valve DN32, PN40, T-bore, stainless steel1.4408 / PTFE / FKM, ISO5211, Weld.

        ZD311565
        40
        Stainless Steel
        DN32
        PTFE
        3-way ball valve DN32, PN40, T-bore
        stainless steel1.4408 / PTFE / FKM, ISO5211, Weld.
        List price €510.51 €429.00
        Availability
        In stock
          More Information
          SKU ZD311565
          Description 3-way ball valve DN32, PN40, T-bore, stainless steel1.4408 / PTFE / FKM, ISO5211, Weld.
          Weight [kg] 5.568000
          Materials Edelstahl 1.4408
          Size DN32
          Body material Stainless Steel
          Seals material PTFE
          Stem seals material PTFE/FKM
          Operation Hand lever
          Execution T-configuration
          Connection type Welding Connection
          Connection size DN32
          Nominal pressure min. [bar] 0
          Nominal pressure max. [bar] 40
          Body test pressure PT [bar] 60
          Temperature range min. [°C] -0
          Temperature range max. [°C] +80
          Media temperature min. [°C] -20
          Media temperature max. [°C] +150
          RoHS Directive EG 2015/863 compliant
          REACH regulation EG 1907/2006 compliant
          Downloads
          Data Sheet
          Data sheet ZD Download
          Manual
          Manual ZD Download
          QM Certificate
          Quality Management Certificate

          english
          Certification cycle 4. April 2023 up to 3. April 2026

          		 Download
          EU Declaration in Conformity
          Regulation EU 1907/2006 (REACH) (de/qm-zertifikate/reach-erklaerung.pdf) Link
          Directive EU 2015/863 (RoHS) Download
