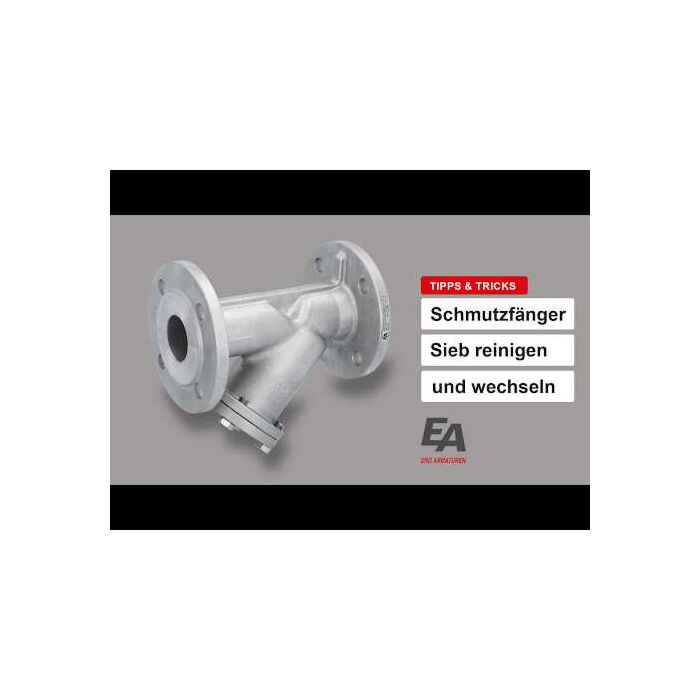

        Schmutzfänger DN150, PN16 GG-25/Edelstahl, Sondersieb 2mm

        CU500212
        GG-25
        DN150
        List price €589.05 €495.00
        Availability
        In stock
          More Information
          SKU CU500212
          Description Schmutzfänger DN150, PN16 GG-25/Edelstahl, Sondersieb 2mm
          Weight [kg] 48.000000
          Materials Grauguss GG-25
          Mesh version 2mm
          Size DN150
          Body material GG-25
          Connection type Flange Connection
          Connection size DN150
          Nominal pressure min. [bar] 0
          Nominal pressure max. [bar] 16
          Body test pressure PT [bar] 24
          Temperature range min. [°C] -0
          Temperature range max. [°C] +80
          Media temperature min. [°C] -10
          Media temperature max. [°C] +300
          Gehäusedesign 2-teilig
          RoHS Directive EG 2015/863 compliant
          REACH regulation EG 1907/2006 compliant
          Downloads
          Data Sheet
          Data sheet CU Download
          Manual
          Manual CU Download
          EU Declaration in Conformity
          Regulation EU 1907/2006 (REACH) (de/qm-zertifikate/reach-erklaerung.pdf) Link
          Directive EU 2015/863 (RoHS) Download
          Certificate
          Quality Management Certificate

          english
          Certification cycle 4. April 2023 up to 3. April 2026

          		 Download
