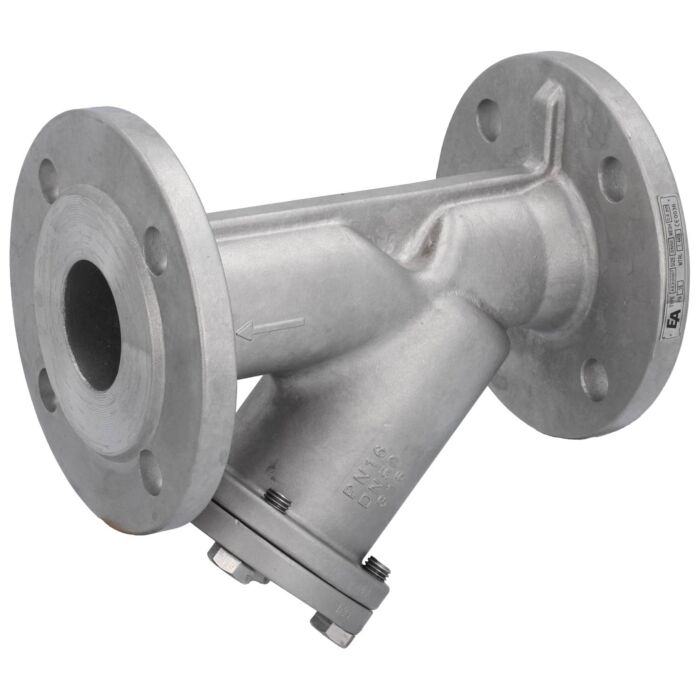

Strainer DN65 flange, PN16, stainless steel 1.4408, Sieve 1.4301 simple screen 0.6mm, length EN558-1

AS300008
Stainless Steel
DN065
Strainer DN65 flange, PN16, stainless steel 1.4408
Sieve 1.4401 simple screen 0.6mm, length EN558-1
List price €430.78 €362.00
Availability
In stock
    More Information
    SKU AS300008
    Description Strainer DN65 flange, PN16, stainless steel 1.4408, Sieve 1.4301 simple screen 0.6mm, length EN558-1
    Weight [kg] 12.900000
    Materials Edelstahl 1.4408
    Mesh version Normal screen
    Size DN065
    Body material Stainless Steel
    Connection type Flange Connection
    Connection size DN65
    Nominal pressure min. [bar] 0
    Nominal pressure max. [bar] 16
    Body test pressure PT [bar] 24
    Temperature range min. [°C] -0
    Temperature range max. [°C] +80
    Media temperature min. [°C] -20
    Media temperature max. [°C] +180
    Gehäusedesign 2-teilig
    RoHS Directive EG 2015/863 compliant
    REACH regulation EG 1907/2006 compliant
