Druckgesteuertes Ventil, DN25, SK32-Ed., OS Edelstahl/PTFE, Ruhe zu, mit Medium

Delivery inquiry

SKU

DM2D3119025/OS

Body material

Stainless Steel

Size

DN025

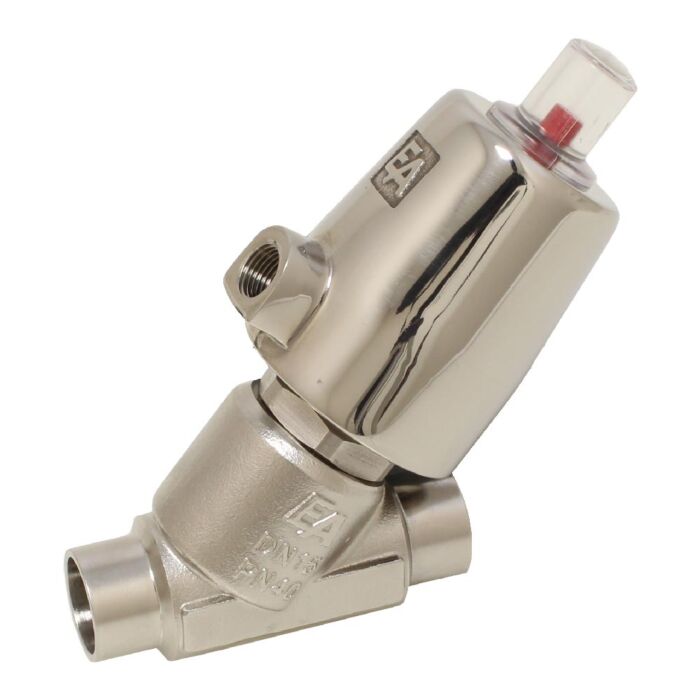

Pressure actuated valve, DN25, SK32-st. steel, OS
stainless steel/PTFE, normally closed, with medium

List price €176.12 €148.00

Availability

Request delivery date

More Information
SKU	DM2D3119025/OS
Description	Druckgesteuertes Ventil, DN25, SK32-Ed., OS Edelstahl/PTFE, Ruhe zu, mit Medium
Weight [kg]	0.810000
Materials	Edelstahl 1.4408
Pilot cylinder	Stainless steel
Size	DN025
Body material	Stainless Steel
Stem seals material	PTFE
Option	Optical position indicator
Function	Normally close, with flow direction
Seat seals	PTFE
Connection type	Anschweißenden EN 10357-A
Connection size	25
Nominal pressure min. [bar]	0
Nominal pressure max. [bar]	6,5
Body test pressure PT [bar]	60
Temperature range min. [°C]	-20
Temperature range max. [°C]	+80
Media temperature min. [°C]	-20
Media temperature max. [°C]	+150
Gehäusedesign	2-teilig
RoHS Directive EG 2015/863	compliant
REACH regulation EG 1907/2006	compliant

EU Declaration in Conformity

Regulation EU 1907/2006 (REACH) (de/qm-zertifikate/reach-erklaerung.pdf)

Directive EU 2015/863 (RoHS)

Certificate

Quality Management Certificate
english
Certification cycle 4. April 2023 up to 3. April 2026

Please log in to make a delivery request.
