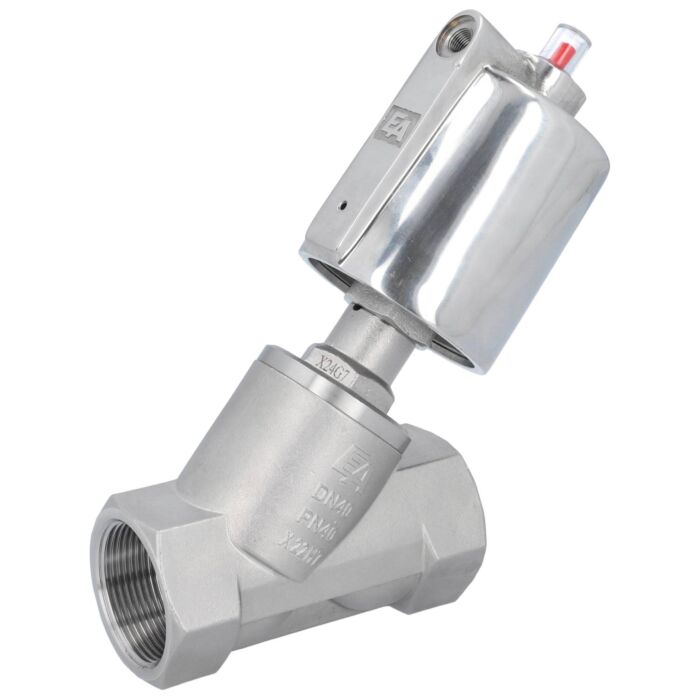

Main image Click to view image in fullscreen

Pressure actuated valve, G11 / 2 ", SK63-stainless, Stainless steel / PTFE Normally open against mediu

Pressure actuated valve, G11 / 2 ", SK63-stainless
Stainless steel / PTFE Normally open against mediu

SKU

DG2D3138040/OS

Body material

Stainless Steel

Size

11/2"

Availability

In stock

Quantity

SKU	DG2D3138040/OS
Description	Pressure actuated valve, G11 / 2 ", SK63-stainless, Stainless steel / PTFE Normally open against mediu
Weight [kg]	3.040000
Pilot cylinder	Stainless steel
Size	11/2"
Body material	Stainless Steel
Stem seals material	PTFE
Option	Optical position indicator
Function	Normally open, against flow direction
Seat seals	PTFE
Connection type	Female thread
Connection size	11/2"
Nominal pressure min. [bar]	0
Nominal pressure max. [bar]	10
Body test pressure PT [bar]	60
Temperature range min. [°C]	-20
Temperature range max. [°C]	+80
Media temperature min. [°C]	-20
Media temperature max. [°C]	+180
Gehäusedesign	2-teilig
Tariff No	84818073
RoHS Directive EG 2015/863	compliant
REACH regulation EG 1907/2006	compliant
