Druckgesteuertes Ventil, DN20, SK32-Ms., OS Edelstahl/PTFE, Ruhe zu, gegen Medium

Delivery inquiry

SKU

DA2D3120020/OS

Body material

Stainless Steel

Size

DN020

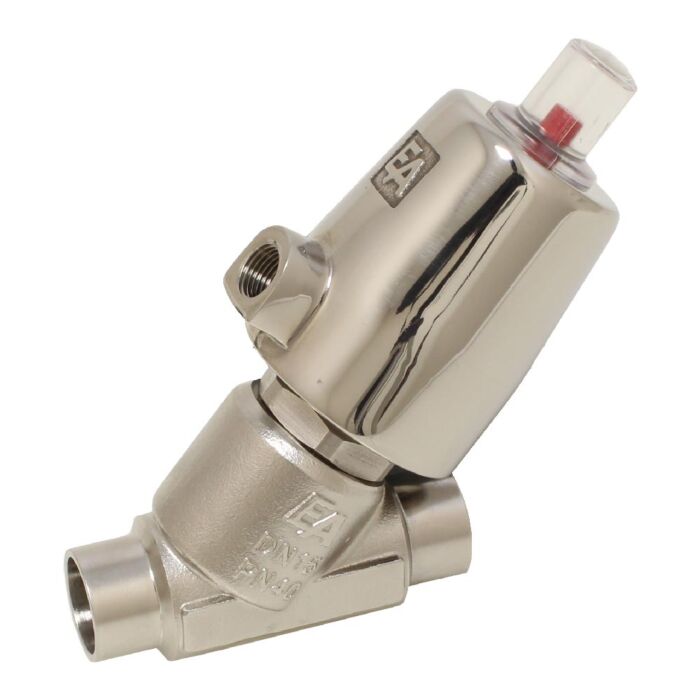

Pressure actuated valve, DN20, SK32-brass, OS
Stainl. steel/PTFE, normally closed against medium

List price €140.42 €118.00

Availability

Request delivery date

More Information
SKU	DA2D3120020/OS
Description	Druckgesteuertes Ventil, DN20, SK32-Ms., OS Edelstahl/PTFE, Ruhe zu, gegen Medium
Weight [kg]	0.710000
Materials	Edelstahl 1.4408
Pilot cylinder	Messing-verchromt
Size	DN020
Body material	Stainless Steel
Stem seals material	PTFE
Option	Optical position indicator
Function	Normally close, against flow direction
Seat seals	PTFE
Connection type	Welding Connection DIN3239
Connection size	20
Nominal pressure min. [bar]	0
Nominal pressure max. [bar]	6
Body test pressure PT [bar]	60
Temperature range min. [°C]	-20
Temperature range max. [°C]	+80
Media temperature min. [°C]	-20
Media temperature max. [°C]	+150
Gehäusedesign	2-teilig
RoHS Directive EG 2015/863	compliant
REACH regulation EG 1907/2006	compliant

EU Declaration in Conformity

Regulation EU 1907/2006 (REACH) (de/qm-zertifikate/reach-erklaerung.pdf)

Directive EU 2015/863 (RoHS)

Certificate

Quality Management Certificate
english
Certification cycle 4. April 2023 up to 3. April 2026
