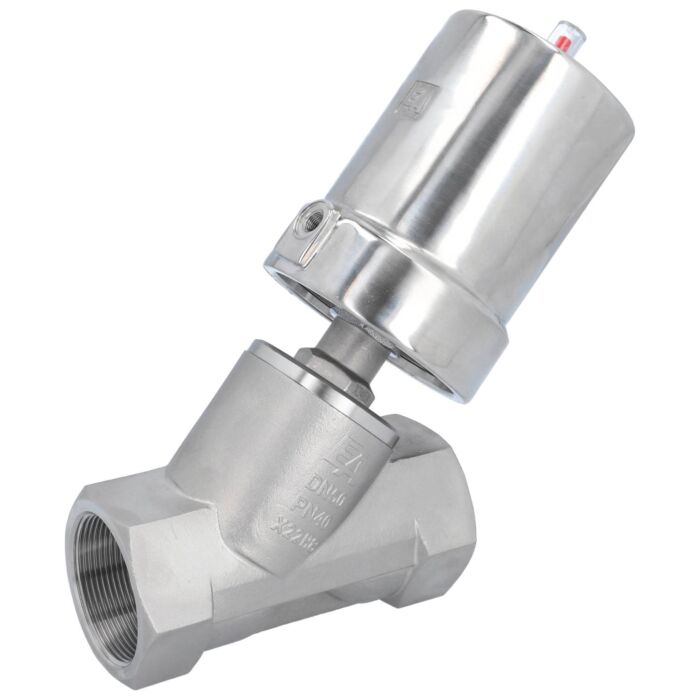

Pressure actuated valve, G2 ", SK80-stainless stee, to stainless steel / PTFE, calm with medium

Pressure actuated valve, G2 ", SK80-stainless stee
to stainless steel / PTFE, calm with medium

SKU

DG2D3116050/OS

Body material

Stainless Steel

Size

Availability

In stock

Quantity

SKU	DG2D3116050/OS
Description	Pressure actuated valve, G2 ", SK80-stainless stee, to stainless steel / PTFE, calm with medium
Weight [kg]	5.400000
Pilot cylinder	Stainless steel
Size	2"
Body material	Stainless Steel
Stem seals material	PTFE
Option	Optical position indicator
Function	Normally close, with flow direction
Seat seals	PTFE
Connection type	Female thread
Connection size	2"
Nominal pressure min. [bar]	0
Nominal pressure max. [bar]	14
Body test pressure PT [bar]	60
Temperature range min. [°C]	-20
Temperature range max. [°C]	+80
Media temperature min. [°C]	-20
Media temperature max. [°C]	+180
Gehäusedesign	2-teilig
Tariff No	84818073
RoHS Directive EG 2015/863	compliant
REACH regulation EG 1907/2006	compliant

Data Sheet
		Data sheet DG2D Filetype: PDF
Manual
		Manual DG2D Filetype: PDF
QM Certificate
		Quality Management Certificate Filetype: PDF english Certification cycle 4. April 2023 up to 3. April 2026
EU Declaration in Conformity
		Regulation EU 1907/2006 (REACH) Filetype: PDF
		Directive EU 2015/863 (RoHS) Filetype: PDF
