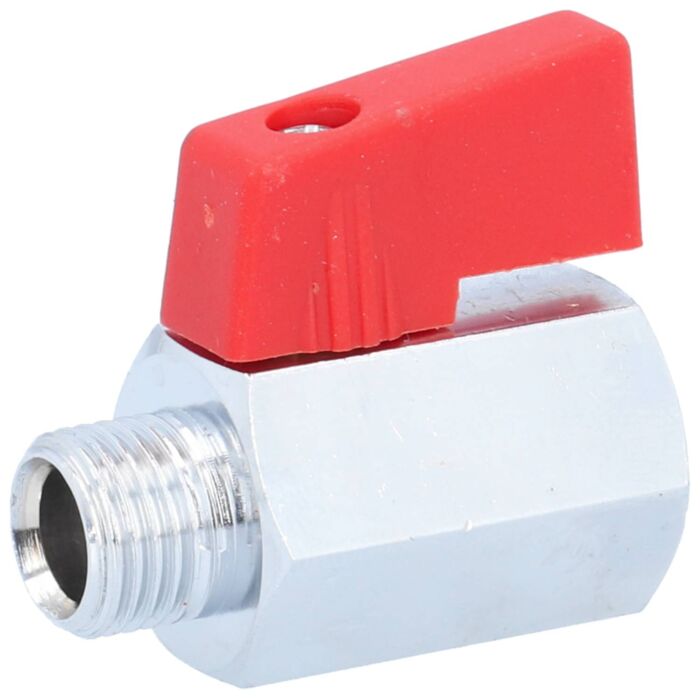

Mini ball valve 1/4", brass/PTFE-NBR, PN15, male/female thread, red handle
Mini ball valve 1/4", brass/PTFE-NBR
PN15, male/female thread, red handle
PN15, male/female thread, red handle
SKU
BC111321
15
Brass
1/4"
PTFE
Your price
€4.17
Price Incl. Tax
Preis inkl. MwSt.
Price Incl. Tax
In stock
Item is not available
Note
Product added to cart.
Loading...
Mini ball valve 1/4", brass/PTFE-NBR, PN15, male/female thread, red handle
2-way mini-ball made of brass for shut-off of neutral liquids.
To actuate the ball valve into the OPEN or CLOSED position, the handle has to turned through 90°.
The ball valve is available with female/male threaded connection and female/female threaded connection in our shop.
| SKU | BC111321 |
|---|---|
| Description | Mini ball valve 1/4", brass/PTFE-NBR, PN15, male/female thread, red handle |
| Weight [kg] | 0.081000 |
| Materials | Brass |
| Size | 1/4" |
| Body material | Brass |
| Seals material | PTFE |
| Stem seals material | NBR |
| Operation | Clamp handle |
| Connection type | female/male |
| Connection size | 1/4" |
| Nominal pressure min. [bar] | 0 |
| Nominal pressure max. [bar] | 15 |
| Body test pressure PT [bar] | 22,5 |
| Temperature range min. [°C] | -0 |
| Temperature range max. [°C] | +80 |
| Media temperature min. [°C] | 0 |
| Media temperature max. [°C] | +90 |
| Gehäusedesign | 1-teilig |
| Tariff No | 84818081 |
| RoHS Directive EG 2015/863 | compliant |
| REACH regulation EG 1907/2006 | compliant |
