Ball valve-TN, 1/4", w. VE-limit switch el./mech., brass/PTFE-FKM, T-bore, max. 250VAC-5A, IP65

SKU

TN111521-VE030900

Nenndruck PN

Body material

Brass

Size

1/4"

Seals material

PTFE

Ball valve-TN, 1/4", w. VE-limit switch el./mech.
brass/PTFE-FKM, T-bore, max. 250VAC-5A, IP65

List price €216.58 €182.00

Availability

Request delivery date

More Information
SKU	TN111521-VE030900
Description	Ball valve-TN, 1/4", w. VE-limit switch el./mech., brass/PTFE-FKM, T-bore, max. 250VAC-5A, IP65
Weight [kg]	0.970000
Materials	Brass
Size	1/4"
Body material	Brass
Seals material	PTFE
Stem seals material	PTFE/FKM
Operation	Hand lever with limit switch box
Execution	T-configuration
Connection type	Female thread
Connection size	1/4"
Nominal pressure min. [bar]	0
Nominal pressure max. [bar]	16
Body test pressure PT [bar]	24
Temperature range min. [°C]	-10
Temperature range max. [°C]	+55
Media temperature min. [°C]	-20
Media temperature max. [°C]	+110
RoHS Directive EG 2015/863	compliant
REACH regulation EG 1907/2006	compliant

Downloads
Data Sheet
	Data sheet TN	Download
	Data sheet VE	Download
Manual
	Manual TN	Download
QM Certificate
	Quality Management Certificate english Certification cycle 4. April 2023 up to 3. April 2026	Download
EU Declaration in Conformity
	Regulation EU 1907/2006 (REACH) (de/qm-zertifikate/reach-erklaerung.pdf)	Link
	Directive EU 2015/863 (RoHS)	Download

Spare-part products

Reduction 8kt.14-Vkt.9, stainless steel
List price €5.95 €5.00

Product details

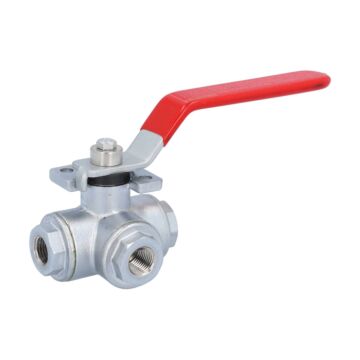

3-way ball valve 1/4 ", PN30, brass / PTFE FKM, T-bore, sealed on all
List price €38.08 €32.00

Product details
Limit el./mech., F03, 8kt.14, IP65, 2 pieces in the housing, max. 250VAC-5A
List price €129.71 €109.00

Product details
