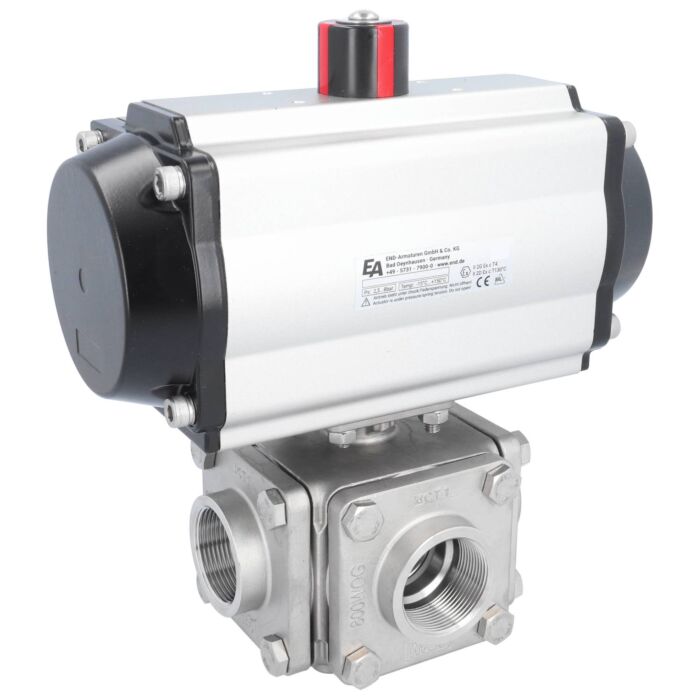

Ball valve ZD, 2", with actuator-OE, SR125, st. steel 1.4408/PTFE-FKM, T-bore, spring return
Ball valve ZD, 2", with actuator-OE, SR125
st. steel 1.4408/PTFE-FKM, T-bore, spring return
st. steel 1.4408/PTFE-FKM, T-bore, spring return
SKU
ZD311528-OE621252
16
Stainless Steel
2"
PTFE
Your price
€1,369.69
Price Incl. Tax
Preis inkl. MwSt.
Price Incl. Tax
In stock
Item is not available
Note
Product added to cart.
Loading...
| SKU | ZD311528-OE621252 |
|---|---|
| Description | Ball valve ZD, 2", with actuator-OE, SR125, st. steel 1.4408/PTFE-FKM, T-bore, spring return |
| Weight [kg] | 28.010000 |
| Materials | Edelstahl 1.4408 |
| Size | 2" |
| Body material | Stainless Steel |
| Function | single acting |
| Seals material | PTFE |
| Stem seals material | PTFE/FKM |
| Operation | pneumatic - single acting |
| Execution | T-configuration |
| Connection type | Female thread |
| Connection size | 2" |
| Nominal pressure min. [bar] | 0 |
| Nominal pressure max. [bar] | 16 |
| Body test pressure PT [bar] | 24 |
| Temperature range min. [°C] | -15 |
| Temperature range max. [°C] | +150 |
| Media temperature min. [°C] | -20 |
| Media temperature max. [°C] | +150 |
| Tariff No | 84818081 |
| RoHS Directive EG 2015/863 | compliant |
| REACH regulation EG 1907/2006 | compliant |
