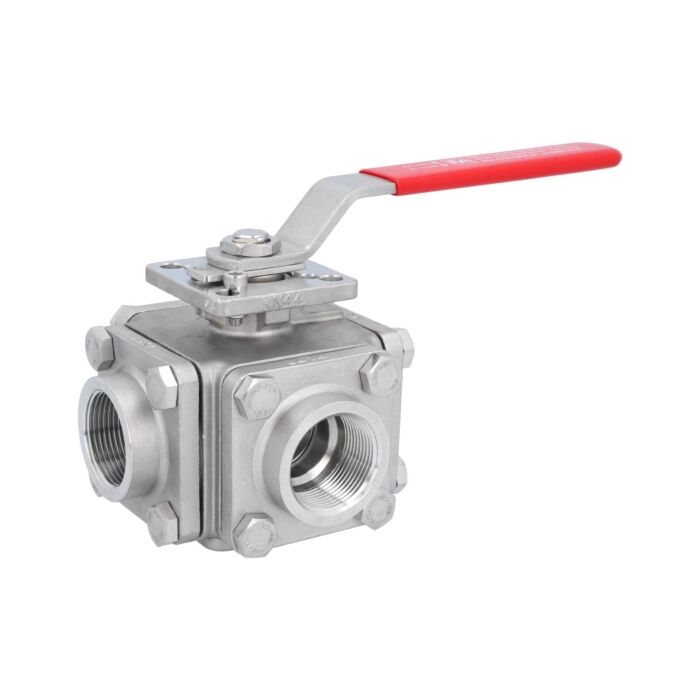

3-way ball valve 11/4 ", PN40, T-bore, stainless steel1.4408 / PTFE / FKM, ISO5211
stainless steel1.4408 / PTFE / FKM, ISO5211
In stock
Note
Product added to cart.
SKU | ZD311526 |
---|---|
Description | 3-way ball valve 11/4 ", PN40, T-bore, stainless steel1.4408 / PTFE / FKM, ISO5211 |
Weight [kg] | 5.313000 |
Materials | Edelstahl 1.4408 |
Size | 11/4" |
Body material | Stainless Steel |
Seals material | PTFE |
Stem seals material | PTFE/FKM |
Operation | Hand lever |
Execution | T-configuration |
Connection type | Innengewinde - DIN2999 |
Connection size | 11/4" |
Nominal pressure min. [bar] | 0 |
Nominal pressure max. [bar] | 40 |
Body test pressure PT [bar] | 60 |
Temperature range min. [°C] | -0 |
Temperature range max. [°C] | +80 |
Media temperature min. [°C] | -20 |
Media temperature max. [°C] | +150 |
Tariff No | 84818081 |
RoHS Directive EG 2015/863 | compliant |
REACH regulation EG 1907/2006 | compliant |
