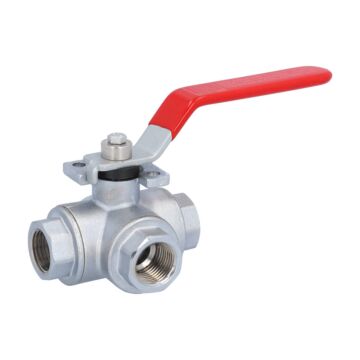

Ball valve-TN, 1/2", w. VE-limit switch el./mech., brass/PTFE-FKM, T-bore, max. 250VAC-5A, IP65

Ball valve-TN, 1/2", w. VE-limit switch el./mech.
brass/PTFE-FKM, T-bore, max. 250VAC-5A, IP65

SKU

TN111523-VE030900

Nenndruck PN

Body material

Brass

Size

1/2"

Seals material

PTFE

Availability

In stock

Quantity

SKU	TN111523-VE030900
Description	Ball valve-TN, 1/2", w. VE-limit switch el./mech., brass/PTFE-FKM, T-bore, max. 250VAC-5A, IP65
Weight [kg]	1.060000
Materials	Brass
Size	1/2"
Body material	Brass
Seals material	PTFE
Stem seals material	PTFE/FKM
Operation	Hand lever with limit switch box
Execution	T-configuration
Connection type	Female thread
Connection size	1/2"
Nominal pressure min. [bar]	0
Nominal pressure max. [bar]	16
Body test pressure PT [bar]	24
Temperature range min. [°C]	-10
Temperature range max. [°C]	+55
Media temperature min. [°C]	-20
Media temperature max. [°C]	+120
Tariff No	84818081
RoHS Directive EG 2015/863	compliant
REACH regulation EG 1907/2006	compliant

Data Sheet
		Data sheet TN Filetype: PDF
		Data sheet VE Filetype: PDF
Manual
		Manual TN Filetype: PDF
QM Certificate
		Quality Management Certificate Filetype: PDF english Certification cycle 4. April 2023 up to 3. April 2026
EU Declaration in Conformity
		Regulation EU 1907/2006 (REACH) Filetype: PDF
		Directive EU 2015/863 (RoHS) Filetype: PDF
