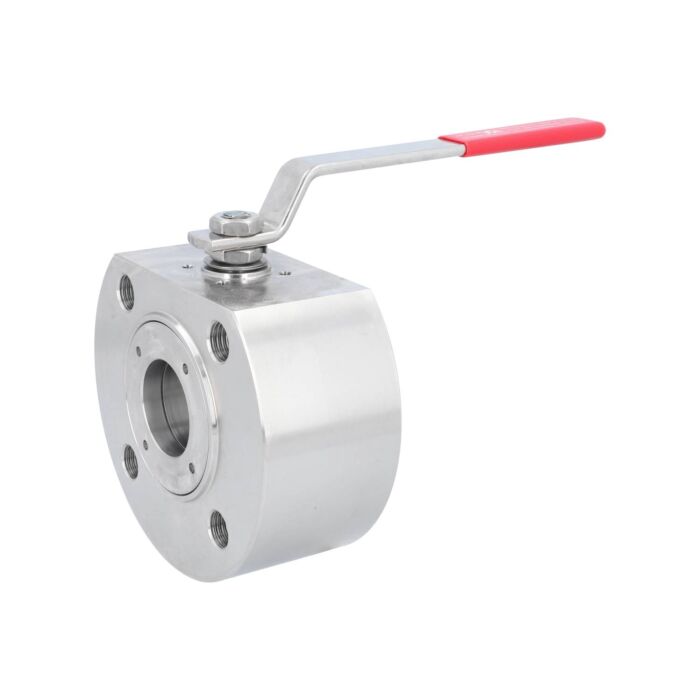

Compact ball valve DN50, PN64, Stainless steel 1.4408 / PTFE FKM / NBR

Compact ball valve DN50, PN64
Stainless steel 1.4408 / PTFE FKM / NBR

SKU

WK311007/PN64

Nenndruck PN

Body material

Stainless Steel

Size

DN50

Seals material

PTFE

Availability

In stock

Quantity

SKU	WK311007/PN64
Description	Compact ball valve DN50, PN64, Stainless steel 1.4408 / PTFE FKM / NBR
Weight [kg]	12.620000
Materials	Edelstahl 1.4408
Size	DN50
Body material	Stainless Steel
Seals material	PTFE
Stem seals material	PTFE/FKM
Operation	Hand lever
Execution	Wafer-type ball valve
Connection type	Flange Connection
Connection size	50
Nominal pressure min. [bar]	0
Nominal pressure max. [bar]	64
Body test pressure PT [bar]	96
Temperature range min. [°C]	-0
Temperature range max. [°C]	+80
Media temperature min. [°C]	-10
Media temperature max. [°C]	+180
Gehäusedesign	1-teilig
Tariff No	84818081
RoHS Directive EG 2015/863	compliant
REACH regulation EG 1907/2006	compliant

Data Sheet
		Data sheet WK Filetype: PDF
Manual
		Manual WK Filetype: PDF
QM Certificate
		Quality Management Certificate Filetype: PDF english Certification cycle 4. April 2023 up to 3. April 2026
EU Declaration in Conformity
		Regulation EU 1907/2006 (REACH) Filetype: PDF
		Directive EU 2015/863 (RoHS) Filetype: PDF
