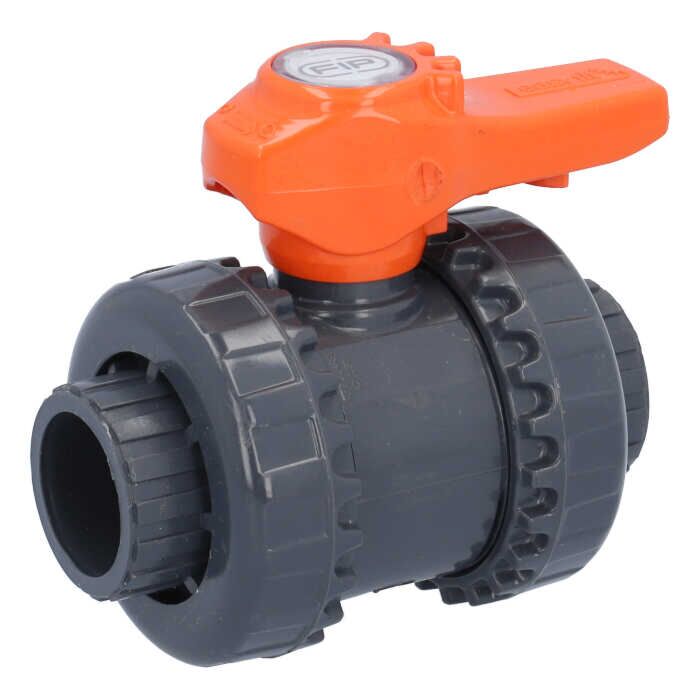

2-way ball valve SL, DN15, bonded socket d20, PN16, PVC-U/PTFE-EPDM, handle: orange

SL711062
16
PVC
DN015
PTFE
2-way ball valve SL, DN15, bonded socket d20, PN16
PVC-U/PTFE-EPDM, handle: orange
List price €17.61 €14.80
Availability
In stock
    More Information
    SKU SL711062
    Description 2-way ball valve SL, DN15, bonded socket d20, PN16, PVC-U/PTFE-EPDM, handle: orange
    Weight [kg] 0.175000
    Size DN015
    Body material PVC
    Seals material PTFE
    Operation Hand lever
    Connection type Bonded Socket Joint
    Connection size DN15
    Nominal pressure min. [bar] 0
    Nominal pressure max. [bar] 16
    Body test pressure PT [bar] 24
    Temperature range min. [°C] -10
    Temperature range max. [°C] +60
    Media temperature min. [°C] -10
    Media temperature max. [°C] +60
    Gehäusedesign 3-teilig
    RoHS Directive EG 2015/863 compliant
    REACH regulation EG 1907/2006 compliant
    Downloads
    Data Sheet
    Data sheet SL
    Manual
    Manual SL
    QM Certificate
    Quality Management Certificate

    english
    Certification cycle 4. April 2023 up to 3. April 2026

    EU Declaration in Conformity
    Regulation EU 1907/2006 (REACH) (de/qm-zertifikate/reach-erklaerung.pdf)
    Directive EU 2015/863 (RoHS)
