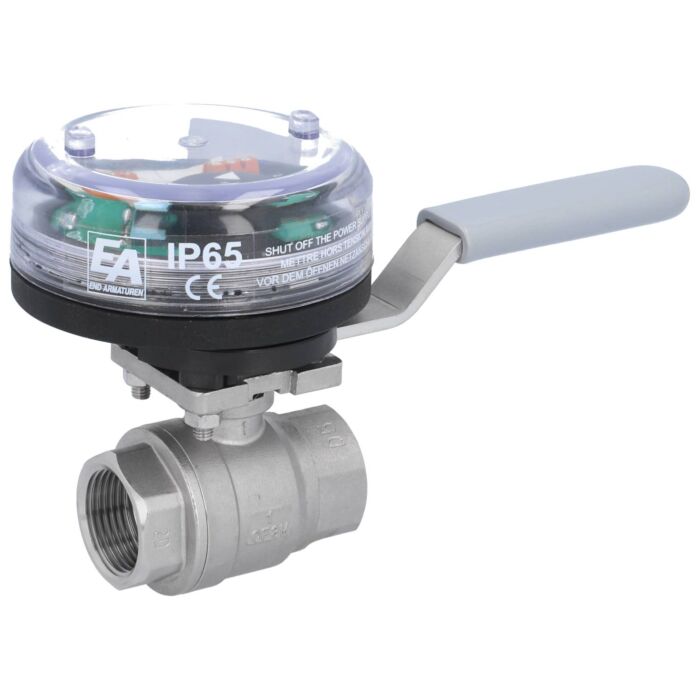

Kugelhahn-MU, 1/4", mit VE-Endschalter el./mech. Edelstahl/PTFE-FKM, max. 250VAC-5A, IP65

Ausstattungsmerkmale:

SKU

MU310021-VE030900

Nenndruck PN

Body material

Stainless Steel

Size

1/4"

Seals material

PTFE

Availability

In stock

Quantity

SKU	MU310021-VE030900
Description	Kugelhahn-MU, 1/4", mit VE-Endschalter el./mech. Edelstahl/PTFE-FKM, max. 250VAC-5A, IP65
Weight [kg]	0.780000
Materials	Edelstahl 1.4408
Ball material	Stainless steel
Size	1/4"
Body material	Stainless Steel
Body material	Edelstahl
Seals material	PTFE
Stem seals material	PTFE/FKM
Operation	Hand lever with limit switch box
Connection type	Innengewinde - DIN2999
Connection size	1/4"
Nominal pressure min. [bar]	0
Nominal pressure max. [bar]	63
Body test pressure PT [bar]	94,5
Temperature range min. [°C]	-0
Temperature range max. [°C]	+80
Media temperature min. [°C]	-30
Media temperature max. [°C]	+120
Gehäusedesign	2-teilig
Tariff No	84818081
RoHS Directive EG 2015/863	compliant
REACH regulation EG 1907/2006	compliant
