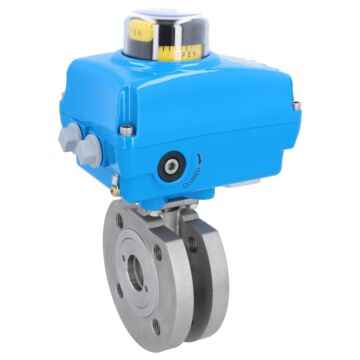

Ball valve MK, DN32, with drive-NE03, stainless steel1.4408 / PTFE FKM, 24V DC, running

Ball valve MK, DN32, with drive-NE03
stainless steel1.4408 / PTFE FKM, 24V DC, running

SKU

MK311005-NE032100

Nenndruck PN

Body material

Stainless Steel

Size

DN32

Seals material

PTFE

Voltage

24V DC

SKU	MK311005-NE032100
Description	Ball valve MK, DN32, with drive-NE03, stainless steel1.4408 / PTFE FKM, 24V DC, running
Weight [kg]	4.640000
Materials	Edelstahl 1.4408
Voltage	24V DC
Size	DN32
Body material	Stainless Steel
Seals material	PTFE
Stem seals material	PTFE/FKM
Operation	Electrically
Execution	Wafer-type ball valve
Connection type	Flange Connection
Connection size	32
Nominal pressure min. [bar]	0
Nominal pressure max. [bar]	16
Body test pressure PT [bar]	24
Temperature range min. [°C]	-20
Temperature range max. [°C]	+70
Media temperature min. [°C]	-25
Media temperature max. [°C]	+120
Gehäusedesign	1-teilig
Tariff No	84818081
RoHS Directive EG 2015/863	compliant
REACH regulation EG 1907/2006	compliant

Data Sheet
		Data sheet MK Filetype: PDF
		Data sheet NE Filetype: PDF
Manual
		Manual MK Filetype: PDF
		Manual NE Filetype: PDF
Wiring Diagram
		Wiring diagram SU-82000-A Filetype: PDF
QM Certificate
		Quality Management Certificate Filetype: PDF english Certification cycle 4. April 2023 up to 3. April 2026
EU Declaration in Conformity
		Regulation EU 1907/2006 (REACH) Filetype: PDF
		Directive EU 2015/863 (RoHS) Filetype: PDF
