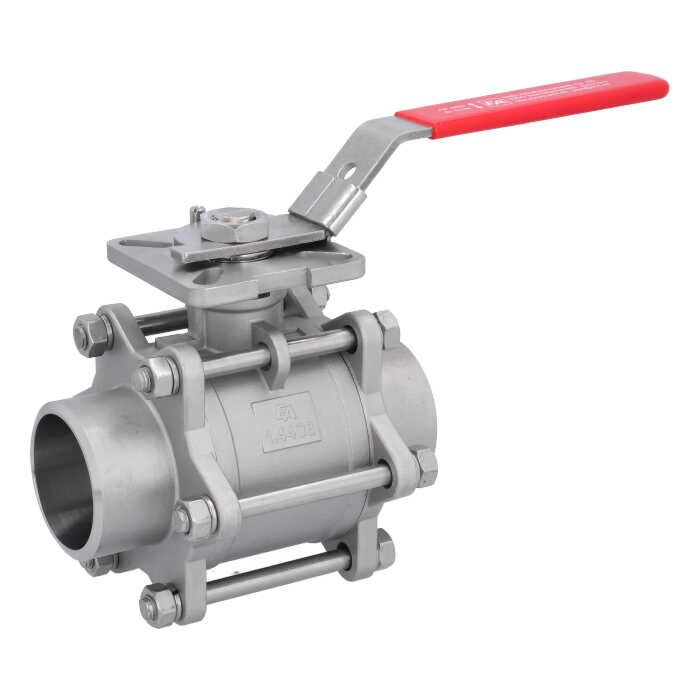

Kugelhahn DN65, PN64, 1.4408/PTFE-FKM, hohlraumarm Anschweißenden, ISO 5211, DIN3202-S13

Ausstattungsmerkmale:

SKU

MA311368

Nenndruck PN

Body material

Stainless Steel

Size

DN065

Seals material

PTFE-cavity free

Ball valve DN65, PN64, 1.4408/PTFE-FKM,cavity free
Welded ends, ISO 5211, DIN3202-S13

List price €307.02 €258.00

Availability

Request delivery date

More Information
SKU	MA311368
Description	Kugelhahn DN65, PN64, 1.4408/PTFE-FKM, hohlraumarm Anschweißenden, ISO 5211, DIN3202-S13
Weight [kg]	7.500000
Materials	Edelstahl 1.4408
Ball material	Stainless steel
Size	DN065
Body material	Stainless Steel
Body material	Edelstahl
Seals material	PTFE-cavity free
Stem seals material	PTFE/FKM
Operation	Hand lever
Execution	DIN/EN-length
Connection type	Welding Connection DIN3239
Connection size	65
Nominal pressure min. [bar]	0
Nominal pressure max. [bar]	64
Body test pressure PT [bar]	96
Temperature range min. [°C]	-0
Temperature range max. [°C]	+80
Media temperature min. [°C]	-25
Media temperature max. [°C]	+180
Gehäusedesign	3-teilig
Tariff No	84818081
RoHS Directive EG 2015/863	compliant
REACH regulation EG 1907/2006	compliant

Downloads
Data Sheet
	Data sheet MA	Download
Manual
	Manual MA	Download
QM Certificate
	Quality Management Certificate english Certification cycle 4. April 2023 up to 3. April 2026	Download
EU Declaration in Conformity
	Regulation EU 1907/2006 (REACH)	Download
	Directive EU 2015/863 (RoHS)	Download

Spare-part products

Dichtungssatz-MA, 21/2"- DN65, PTFE/FKM hohlraumarm
List price €94.01 €79.00

Product details
Ball-MA, 21/2", stainless steel
List price €40.34 €33.90

Product details
