Kompakt-Kugelhahn DN65, PN16 GG25/PTFE-NBR, messing-Hartverchromt

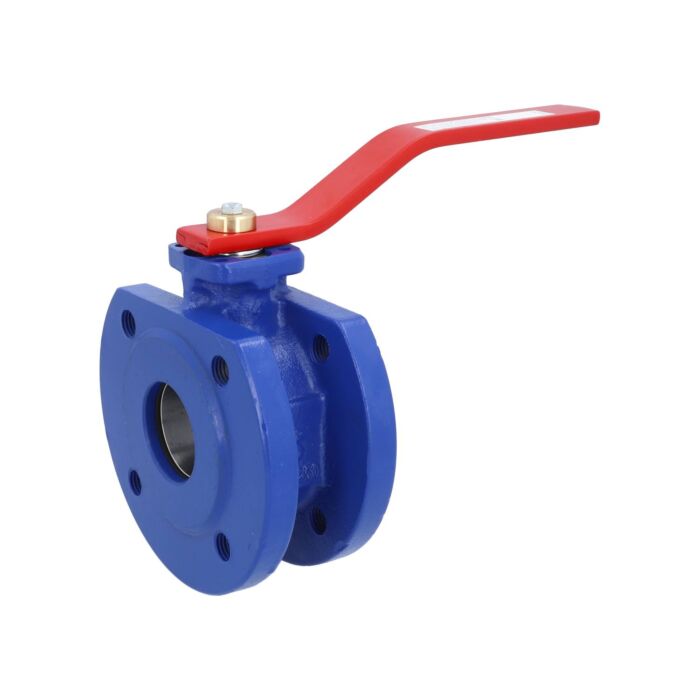

Compact ball valve DN65, PN16
Cast iron-25 / PTFE-NBR, brass-Hard Chrome

SKU

BK561008

Nenndruck PN

Body material

GG-25

Size

DN065

Seals material

PTFE

Availability

In stock

Quantity

SKU	BK561008
Description	Kompakt-Kugelhahn DN65, PN16 GG25/PTFE-NBR, messing-Hartverchromt
Weight [kg]	8.191000
Materials	Grauguss GG-25
Size	DN065
Body material	GG-25
Seals material	PTFE
Stem seals material	NBR
Operation	Hand lever
Execution	Wafer-type ball valve
Connection type	Flange Connection
Connection size	65
Nominal pressure min. [bar]	0,
Nominal pressure max. [bar]	16
Body test pressure PT [bar]	24
Temperature range min. [°C]	-0
Temperature range max. [°C]	+80
Media temperature min. [°C]	-10
Media temperature max. [°C]	+100
Gehäusedesign	1-teilig
Tariff No	84818081
RoHS Directive EG 2015/863	compliant
REACH regulation EG 1907/2006	compliant
