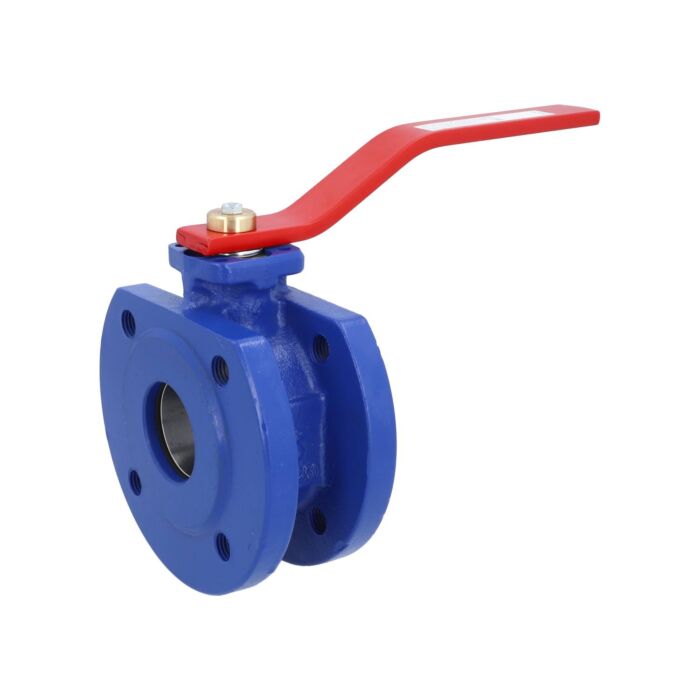

Kompakt-Kugelhahn DN50, PN16 GG25/PTFE-NBR, messing-Hartverchromt

Compact ball valve DN50, PN16
Cast iron-25 / PTFE-NBR, brass-Hard Chrome

SKU

BK561007

Nenndruck PN

Body material

GG-25

Size

DN050

Seals material

PTFE

Availability

In stock

Quantity

SKU	BK561007
Description	Kompakt-Kugelhahn DN50, PN16 GG25/PTFE-NBR, messing-Hartverchromt
Weight [kg]	6.400000
Materials	Grauguss GG-25
Size	DN050
Body material	GG-25
Seals material	PTFE
Stem seals material	NBR
Operation	Hand lever
Execution	Wafer-type ball valve
Connection type	Flange Connection
Connection size	50
Nominal pressure min. [bar]	0
Nominal pressure max. [bar]	16
Body test pressure PT [bar]	24
Temperature range min. [°C]	-0
Temperature range max. [°C]	+80
Media temperature min. [°C]	-10
Media temperature max. [°C]	+100
Gehäusedesign	1-teilig
Tariff No	84818081
RoHS Directive EG 2015/863	compliant
REACH regulation EG 1907/2006	compliant

Data Sheet
		Data sheet BK Filetype: PDF
Manual
		Manual BK Filetype: PDF
QM Certificate
		Quality Management Certificate Filetype: PDF english Certification cycle 4. April 2023 up to 3. April 2026
EU Declaration in Conformity
		Regulation EU 1907/2006 (REACH) Filetype: PDF
		Directive EU 2015/863 (RoHS) Filetype: PDF
