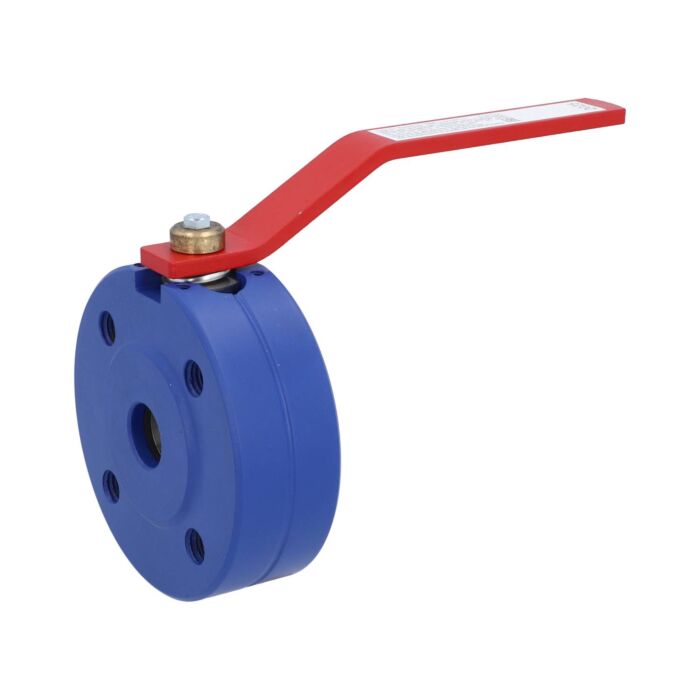

Kompakt-Kugelhahn DN20, PN16 GG25/PTFE-NBR, messing-Hartverchromt
Cast iron-25 / PTFE-NBR, brass-Hard Chrome
In stock
Note
Product added to cart.
SKU | BK561003 |
---|---|
Description | Kompakt-Kugelhahn DN20, PN16 GG25/PTFE-NBR, messing-Hartverchromt |
Weight [kg] | 1.619000 |
Materials | Grauguss GG-25 |
Size | DN020 |
Body material | GG-25 |
Seals material | PTFE |
Stem seals material | NBR |
Operation | Hand lever |
Execution | Wafer-type ball valve |
Connection type | Flange Connection |
Connection size | 20 |
Nominal pressure min. [bar] | 0 |
Nominal pressure max. [bar] | 16 |
Body test pressure PT [bar] | 24 |
Media temperature min. [°C] | -10 |
Media temperature max. [°C] | +100 |
Gehäusedesign | 1-teilig |
Tariff No | 84818081 |
RoHS Directive EG 2015/863 | compliant |
REACH regulation EG 1907/2006 | compliant |
