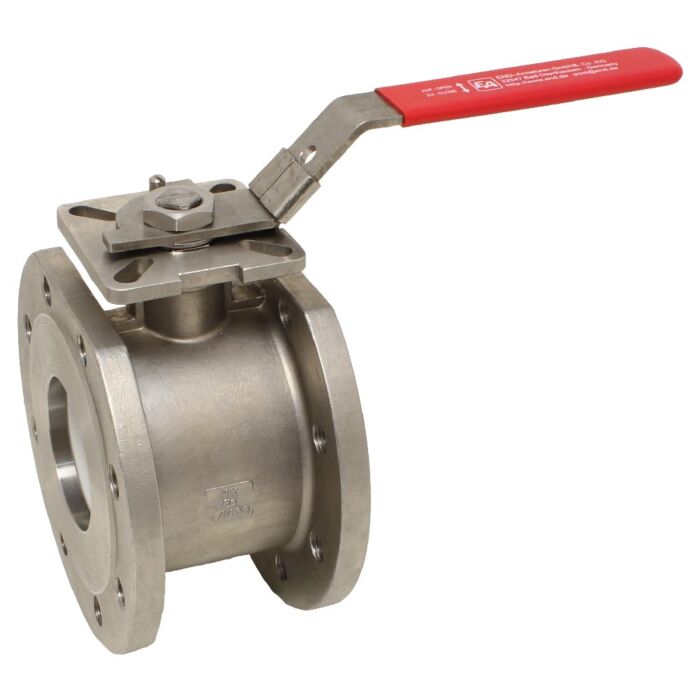

Compact ball valve DN125, PN16, Stainless steel 1.4408 / PTFE FKM, ISO5211

SKU

MK311011

Nenndruck PN

Body material

Stainless Steel

Size

DN125

Seals material

PTFE

Compact ball valve DN125, PN16
Stainless steel 1.4408 / PTFE FKM, ISO5211

List price €1,198.33 €1,007.00

Availability

In stock

More Information
SKU	MK311011
Description	Compact ball valve DN125, PN16, Stainless steel 1.4408 / PTFE FKM, ISO5211
Weight [kg]	37.000000
Materials	Edelstahl 1.4408
Size	DN125
Body material	Stainless Steel
Seals material	PTFE
Stem seals material	PTFE/FKM
Operation	Hand lever
Execution	Wafer-type ball valve
Connection type	Flange Connection
Connection size	DN125
Nominal pressure min. [bar]	0
Nominal pressure max. [bar]	16
Body test pressure PT [bar]	24
Temperature range min. [°C]	-0
Temperature range max. [°C]	+80
Media temperature min. [°C]	-25
Media temperature max. [°C]	+180
Gehäusedesign	1-teilig
RoHS Directive EG 2015/863	compliant
REACH regulation EG 1907/2006	compliant

Downloads
Data Sheet
	Data sheet MK	Download
Manual
	Manual MK	Download
QM Certificate
	Quality Management Certificate english Certification cycle 4. April 2023 up to 3. April 2026	Download
EU Declaration in Conformity
	Regulation EU 1907/2006 (REACH) (de/qm-zertifikate/reach-erklaerung.pdf)	Link
	Directive EU 2015/863 (RoHS)	Download
