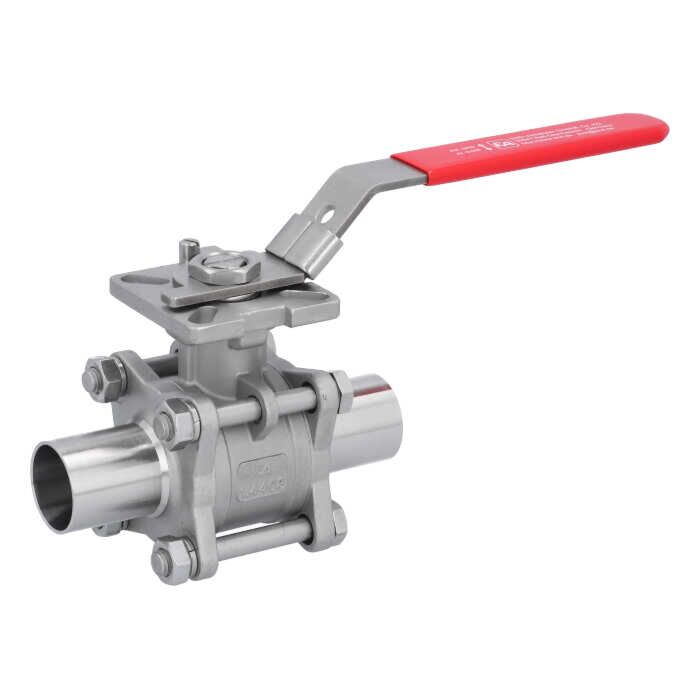

        Ball valve DN32, PN64, 1.4408/PTFE-FKM,cavity free, Welded ends DIN 11852, ISO 5211, l=144mm

        Ausstattungsmerkmale:
        • Rostfrei
          Rostfrei
          Rostfrei
          Gehäuse aus rostfreiem Edelstahl gefertigt
        • Anti-Static
          Anti-Static
          Anti-Static
          Mit Anti-Static Einrichtung gegen statische Aufladungen
        • CE-PED
          CE-PED
          CE-PED
          CE-Kennzeichnung gemäß Druckgeräte-Richtlinie (PED)
        • DIN-Baulänge
          DIN-Baulänge
          DIN-Baulänge
          Einbaulänge gemäß Norm-Vorgaben
        • ISO 5211
          ISO 5211
          ISO 5211
          Mit Flanschplatte nach ISO 5211 für direkten Antriebsaufbau
        MA311365/MO
        Stainless Steel
        DN032
        PTFE-cavity free
        Ball valve DN32, PN64, 1.4408/PTFE-FKM,cavity free
        Welded ends DIN 11852, ISO 5211, l=144mm
        List price €85.68 €72.00
        Availability
        In stock
          More Information
          SKU MA311365/MO
          Description Ball valve DN32, PN64, 1.4408/PTFE-FKM,cavity free, Welded ends DIN 11852, ISO 5211, l=144mm
          Weight [kg] 2.100000
          Materials Edelstahl 1.4408
          Ball material Stainless steel
          Size DN032
          Body material Stainless Steel
          Body material Edelstahl
          Seals material PTFE-cavity free
          Stem seals material PTFE/FKM
          Operation Hand lever
          Connection type Anschweißenden DIN 11852-Orbital
          Connection size 32
          Nominal pressure min. [bar] 0
          Nominal pressure max. [bar] 64
          Body test pressure PT [bar] 96
          Temperature range min. [°C] -0
          Temperature range max. [°C] +80
          Media temperature min. [°C] -25
          Media temperature max. [°C] +180
          Gehäusedesign 3-teilig
          RoHS Directive EG 2015/863 compliant
          REACH regulation EG 1907/2006 compliant
