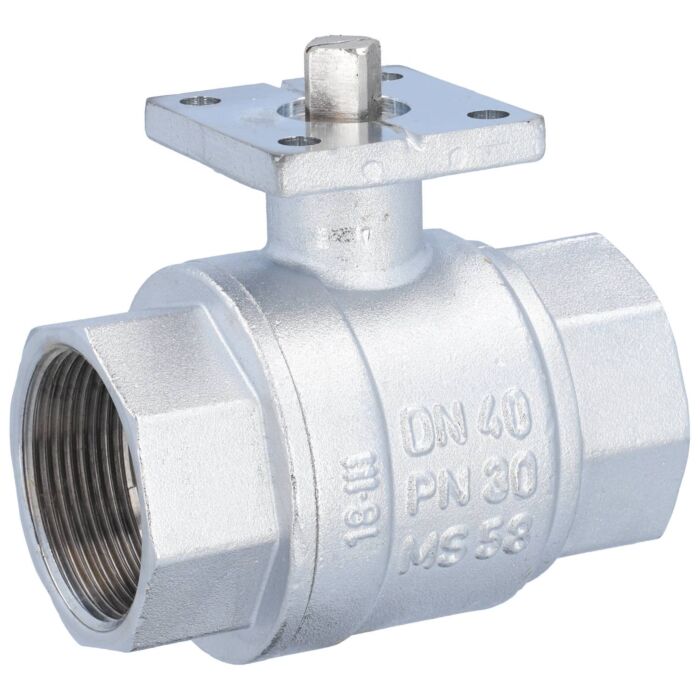

Kugelhahn, PN16 bis PN40, Messing/PTFE-FKM Innengewinde, Flansch für Antrieb
2-Wege Kugelhahn für den Aufbau von Antrieben. Für neutrale gasförmige, flüssige oder zähflüssige Medien.
- Flanschplatte nach ISO 5211
- wartungsfrei
- voller Durchgang
- beiderseits Innengewinde
- Armaturenspindel mit Vierkant
SKU
KA1100
Female thread - ISO228
Brass
PTFE
Available in many variants
| SKU | KA1100 |
|---|---|
| Description | Kugelhahn, PN16 bis PN40, Messing/PTFE-FKM Innengewinde, Flansch für Antrieb |
| Body material | Brass |
| Seals material | PTFE |
| Stem seals material | 0 |
| Operation | for actuator-mounting |
| Connection type | Female thread - ISO228 |
| RoHS Directive EG 2015/863 | compliant |
| REACH regulation EG 1907/2006 | compliant |
All information is non-binding and subject to change without notice. It may not apply to all applications. Limitations due to media or operating conditions are possible. The suitability and safe operation of the valves is always the responsibility of the operator or the manufacturer of the machine or system.
Unless otherwise specified, the stated pressure ratings refer to Group II fluids in accordance with Regulation (EC) No. 1272/2008 at a temperature of +20 °C.
Please note that the products we supply, in the form in which they are delivered, may be classified as partly completed machinery in accordance with Article 2(g) of Directive 2006/42/EC on machinery. Commissioning is prohibited until it has been determined that the machinery into which the partly completed machinery is incorporated complies with the provisions of Directive 2006/42/EC on machinery.
All information is subject to change and non-binding.
Downloading 3D models is only available to registered and logged-in users with a B2B account. Log in now!
All downloadable files and documents, such as data sheets, instructions, or 3D models, are not part of a document update service. Users are solely responsible for ensuring they are using the most up-to-date versions.
The copyright for all provided documents and 3D models lies with END-Armaturen GmbH & Co. KG und Watergates GmbH & Co. KG. We expressly emphasize that the data we provide may only be used in connection with components manufactured or supplied by us. In the event of misuse, we reserve the right to claim damages from the user. Errors and changes excepted.
Downloading 3D models is only available to registered and logged-in users with a B2B account. Log in now!
All downloadable files and documents, such as data sheets, instructions, or 3D models, are not part of a document update service. Users are solely responsible for ensuring they are using the most up-to-date versions.
The copyright for all provided documents and 3D models lies with END-Armaturen GmbH & Co. KG und Watergates GmbH & Co. KG. We expressly emphasize that the data we provide may only be used in connection with components manufactured or supplied by us. In the event of misuse, we reserve the right to claim damages from the user. Errors and changes excepted.
Kugelhahn, PN16 bis PN40, Messing/PTFE-FKM Innengewinde, Flansch für Antrieb
Bauform
2-teilige Körperkonstruktion (verschraubt), mit vollem Durchgang. Flanschplatte nach ISO 5211 für den Aufbau von pneumatischen oder elektrischen Antrieben. Auch für den direkten Aufbau von Endschaltern, zum Beispiel dem Endschaltergehäuse Art. VE.
Betätigung
90°-Drehung der Spindel durch einen Antrieb.
Für Betriebstemperaturen über +80°C siehe Druck-Temperatur-Diagramm im Datenblatt.
