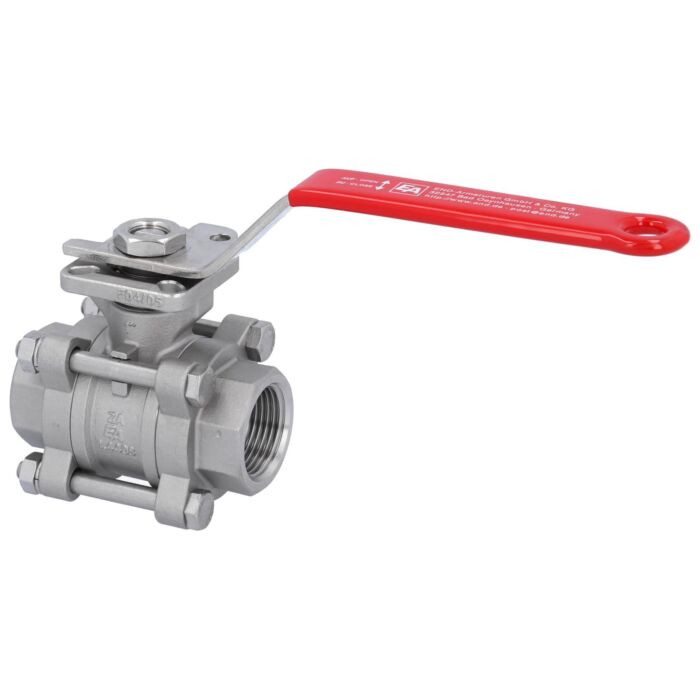

Kugelhahn, PN64, Edelstahl/PTFE-FKM 3-teilig, Innengewinde, Handhebel
2-Wege Kugelhahn mit TA-Luft Zertifizierung
- 3-teilige, verschraubte Körperkonstruktion
- voller Durchgang
- Innengewinde
- wartungsfrei
- Flanschplatte nach ISO 5211 für Antriebsaufbau
- Stempelung nach AD-Merkblatt A4
SKU
ZA31102
Female thread - DIN2999
Stainless Steel
PTFE
Available in many variants
| SKU | ZA31102 |
|---|---|
| Description | Kugelhahn, PN64, Edelstahl/PTFE-FKM 3-teilig, Innengewinde, Handhebel |
| Approvales | TA Luft |
| Ball material | Stainless steel |
| Body material | Stainless Steel |
| Body material | Edelstahl |
| Seals material | PTFE |
| Stem seals material | 0 |
| Operation | Hand lever |
| Execution | DIN/EN-length |
| Connection type | Female thread - DIN2999 |
| RoHS Directive EG 2015/863 | compliant |
| REACH regulation EG 1907/2006 | compliant |
All information is non-binding and subject to change without notice. It may not apply to all applications. Limitations due to media or operating conditions are possible. The suitability and safe operation of the valves is always the responsibility of the operator or the manufacturer of the machine or system.
Unless otherwise specified, the stated pressure ratings refer to Group II fluids in accordance with Regulation (EC) No. 1272/2008 at a temperature of +20 °C.
Please note that the products we supply, in the form in which they are delivered, may be classified as partly completed machinery in accordance with Article 2(g) of Directive 2006/42/EC on machinery. Commissioning is prohibited until it has been determined that the machinery into which the partly completed machinery is incorporated complies with the provisions of Directive 2006/42/EC on machinery.
All information is subject to change and non-binding.
Downloading 3D models is only available to registered and logged-in users with a B2B account. Log in now!
All downloadable files and documents, such as data sheets, instructions, or 3D models, are not part of a document update service. Users are solely responsible for ensuring they are using the most up-to-date versions.
The copyright for all provided documents and 3D models lies with END-Armaturen GmbH & Co. KG und Watergates GmbH & Co. KG. We expressly emphasize that the data we provide may only be used in connection with components manufactured or supplied by us. In the event of misuse, we reserve the right to claim damages from the user. Errors and changes excepted.
Downloading 3D models is only available to registered and logged-in users with a B2B account. Log in now!
All downloadable files and documents, such as data sheets, instructions, or 3D models, are not part of a document update service. Users are solely responsible for ensuring they are using the most up-to-date versions.
The copyright for all provided documents and 3D models lies with END-Armaturen GmbH & Co. KG und Watergates GmbH & Co. KG. We expressly emphasize that the data we provide may only be used in connection with components manufactured or supplied by us. In the event of misuse, we reserve the right to claim damages from the user. Errors and changes excepted.
Kugelhahn, PN64, Edelstahl/PTFE-FKM 3-teilig, Innengewinde, Handhebel
Bauform
3-teilige Körperkonstruktion (verschraubt), wartungsfrei, mit vollem Durchgang. Flanschplatte
nach ISO 5211 für Antriebsaufbau. Stempelung nach AD-Merkblatt A4, Fire-Safe Design, Anti-Static Ausführung.
Prüfgrundlagen
DN15 ... DN100 TA-Luft zertifiziert nach DIN EN ISO 15848-1 und VDI 2440:
- Prüfdruck: 40bar
- Prüftemperatur: 80°C
- Festigkeitsklasse: CO3
- Dichtheitsklasse: AH
Besonderheiten
- Flanschplatte für Antriebsaufbau mit Doppellochkreis
- Handhebel in AUF- und ZU-Stellung abschließbar
- Spindelpackung mit Tellerfederpaket und Sicherungsblech, wartungsfrei
- Gehäuseteile mit Zentrier-Nut und Feder, zum leichten und zentriergenauen Zusammenbau (z.B. nach dem Verschweißen)
Betätigung
90°-Drehung des Handhebels.
Um jeweils 90° gegen die Spindel versetzbar.
Betriebsdruck
Für Betriebstemperaturen über +80°C siehe Druck-Temperatur-Diagramm.
