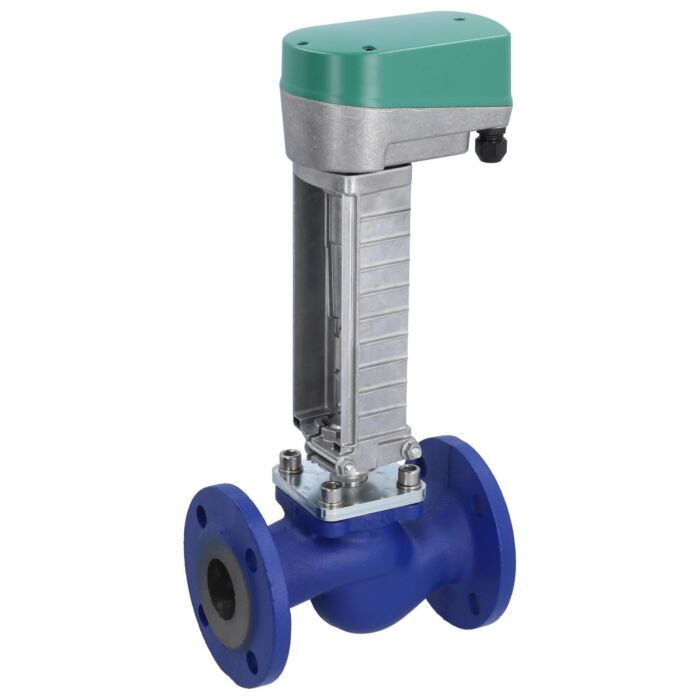

Motor control valve, DN65, flange, RK,, Cast iron-25 / PTFE, 24VAC / DC, Kvs = 63m„ / h

Motor control valve, DN65, flange, RK,
Cast iron-25 / PTFE, 24VAC / DC, Kvs = 63m„ / h

SKU

AMBK51223065/04

Body material

GG-25

Size

DN065

Seals material

PTFE

Availability

Request delivery date

Quantity

We would be happy to answer any questions for the product you require. Simply add your questions in the textbox at the end of this formular.

Your contact details

Name

Email address

Phone Number

Company

Customer No.

Street

ZIP/Postal Code

City

Country

Your Questions

* Required Fields

SKU	AMBK51223065/04
Description	Motor control valve, DN65, flange, RK,, Cast iron-25 / PTFE, 24VAC / DC, Kvs = 63m„ / h
Weight [kg]	17.700000
Size	DN065
Body material	GG-25
Function	Continuous control 1/4 ... 20mA / 0,5/2 ... 10V
Seals material	PTFE
Connection type	Flange Connection
Connection size	65
Nominal pressure min. [bar]	0
Nominal pressure max. [bar]	04
Tariff No	84818073
RoHS Directive EG 2015/863	compliant
REACH regulation EG 1907/2006	compliant

Data Sheet
		Data sheet AMBK Filetype: PDF
		Valve data Questionnaire Filetype: PDF
Manual
		Manual AMBK Filetype: PDF
QM Certificate
		Quality Management Certificate Filetype: PDF english Certification cycle 4. April 2023 up to 3. April 2026
EU Declaration in Conformity
		Regulation EU 1907/2006 (REACH) Filetype: PDF
		Directive EU 2015/863 (RoHS) Filetype: PDF
