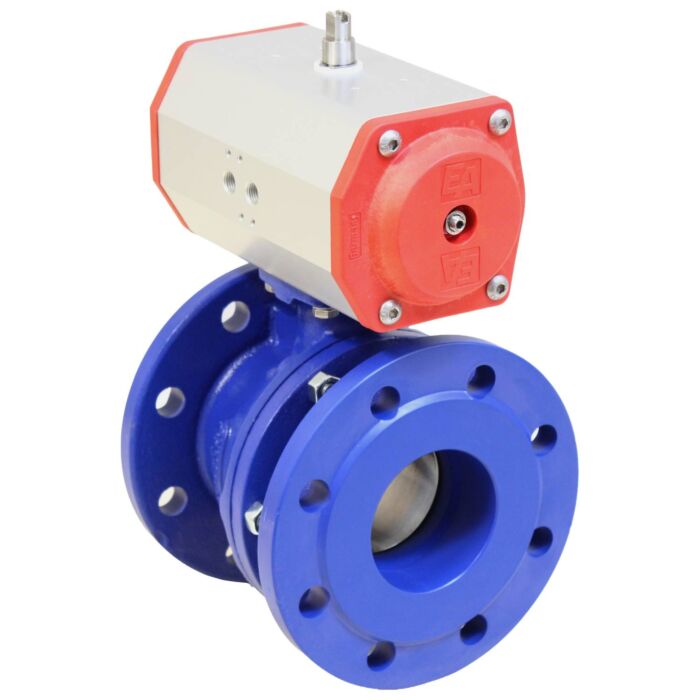

Ball valve TF, DN80, with drive-ED, DW85, Cast iron-40 / stainless steel, PTFE / NBR, double

Ball valve TF, DN80, with drive-ED, DW85
Cast iron-40 / stainless steel, PTFE / NBR, double

SKU

TF551009-ED620852

Nenndruck PN

Body material

GGG-40.3

Size

DN080

Seals material

PTFE

Availability

In stock

Quantity

SKU	TF551009-ED620852
Description	Ball valve TF, DN80, with drive-ED, DW85, Cast iron-40 / stainless steel, PTFE / NBR, double
Weight [kg]	21.060000
Materials	Sphäroguss GGG-40
Size	DN080
Body material	GGG-40.3
Function	double acting
Seals material	PTFE
Stem seals material	NBR
Operation	pneumatic - double acting
Execution	DIN/EN-length
Connection type	Flange Connection
Connection size	80
Nominal pressure min. [bar]	0
Nominal pressure max. [bar]	16
Body test pressure PT [bar]	24
Temperature range min. [°C]	-10
Temperature range max. [°C]	+80
Media temperature min. [°C]	-10
Media temperature max. [°C]	+100
Gehäusedesign	2-teilig
Tariff No	84818081
RoHS Directive EG 2015/863	compliant
REACH regulation EG 1907/2006	compliant
